A few tips for working on high-surface-area problems

What do you do when there are too many pieces to fit in your head?

A few tips for working on things that involve a lot of moving pieces, that have a high “surface area”.

Johno Whitaker


April 12, 2024

A note from Johno

I’ve been writing brief notes on my own blog for years. I’ll be posting on the Answer.AI blog too now that I work here – here’s what is hopefully the first of many posts. This one is just a few thoughts inspired by some recent work, which I hope you’ll find interesting. I’d love to hear what you think; you can find me here on Twitter/X.

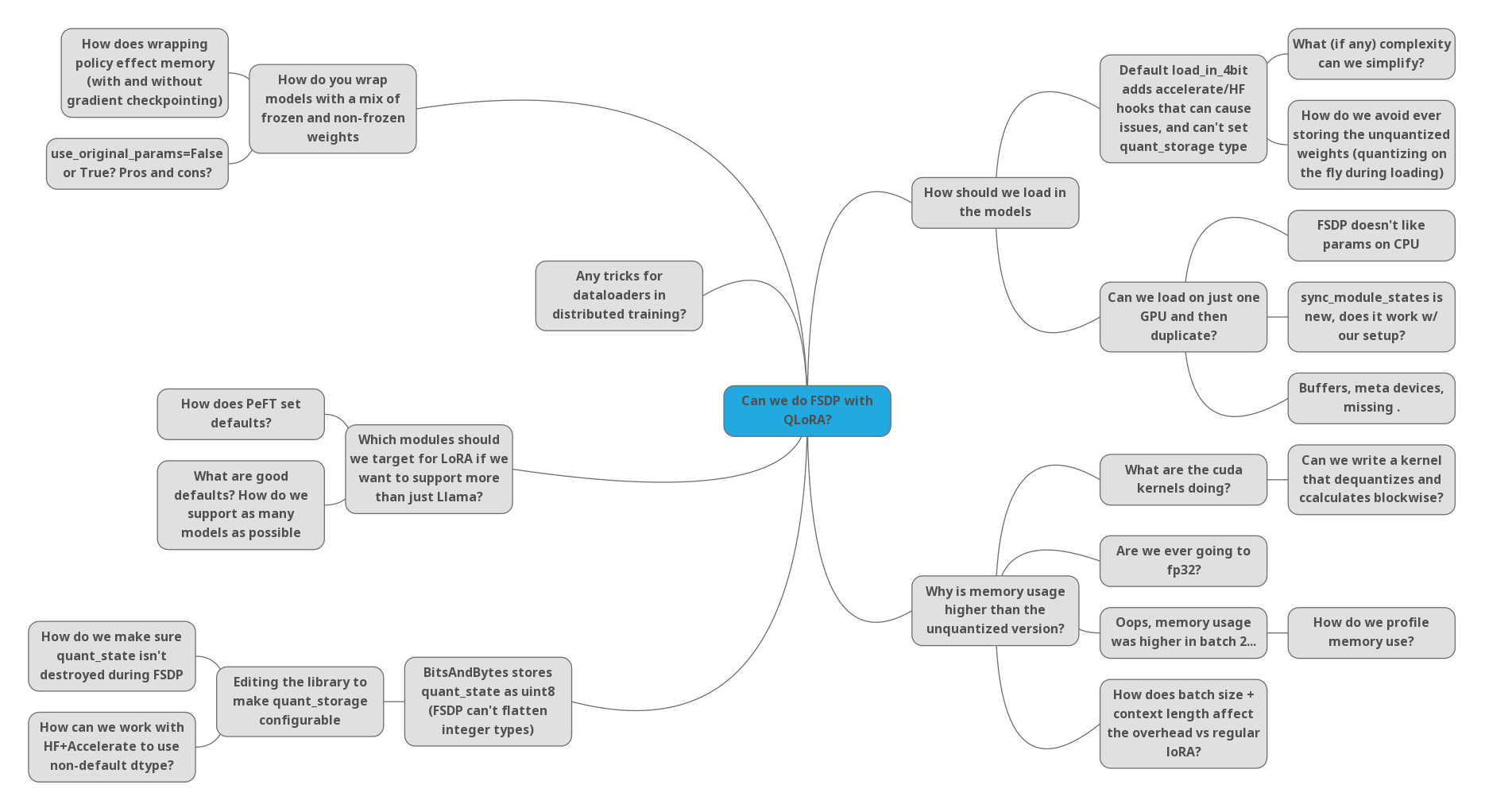

Some of the many questions/directions we faced when trying to get QLoRA working with FSDP - an example of a high-surface-area problem!

Some problems are fairly well-defined and narrow in scope: ‘translate this maths into code’, or ‘try a different embedding dimension on this task’. But as AI researchers we often work on things that involve a lot of moving pieces, and when something doesn’t work it can be hard to find out where the issue(s) may be, let alone what we need to do to fix them. I think of these tasks as having a high “surface area”, and in this post I’ll share a few tips for dealing with these inspired by a recent experience with one such problem.

Tip 1: Start with a minimal example and build up

Rather than beginning with the full, complicated task, see if there’s a smaller version you can create that still lets you meaningfully probe the problem. For example, rather than using Llama-2-7B with LoRA adapters, I did some early tests with a network made of blocks like this:

class Block(torch.nn.Module):
    def __init__(self, size=512):
        self.l1 = torch.nn.Linear(size, size)
        self.l2 = torch.nn.Linear(size, size)
        for param in self.l2.parameters(): param.requires_grad = False

Starting small lets you add bits of complexity one at a time, gradually revealing different aspects of the problem. With this small example I could experiment with and isolate specific aspects of the larger challenge - for example, swapping out one linear layer with a quantized version. The goal here is to reduce the surface area that is in focus at a given time, and incrementally add more as we figure things out.

Tip 2: Log/instrument everything

Debugging something opaque is a pain, so anything that provides more visibility into what is happening is useful. Printing out tensor shapes, logging losses, gradients and resource usage, and generally instrumenting everything that you possibly can are gifts to your future self here. For example, consider the following two memory profiles captured with this excellent pytorch tool:

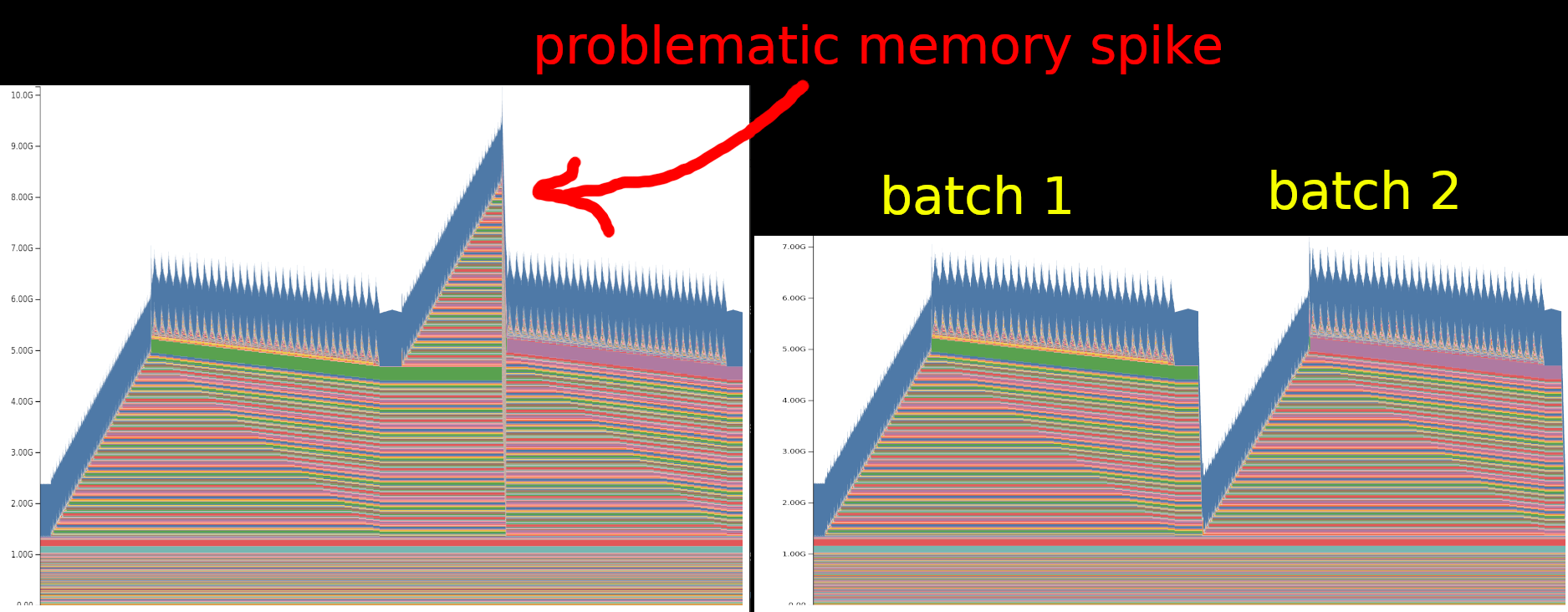

Saving a snapshot of memory use over two successive batches of training data reveals an unexpected spike in memory (left) until a fix is put in place (right)

In this case, a somewhat sneaky bug had crept in, causing memory usage to spike in the second batch of training. Printing the memory use at different stages helped show that something funky was going on, but it was only through a combination of memory profiling and a minimal example that I was able to spot the issue. I hadn’t used this memory visualization tool before - it’s only a few months old, and I hadn’t heard of it until a colleague suggested it. Imagine all of the pain that could be saved if more AI researchers used tools like this!

Whether you’re on team “inspect it manually in a debugger”, team “print all the things” or team “log to W&B and call that good”, make sure you have some way to see more of what is actually going on wherever possible :)

Tip 3: Teamwork FTW

Explaining a problem is an excellent debugging tool, even if the explainee doesn’t actually contribute any new knowledge - hence the excellent “rubber duck debugging” technique. However, team members with deep complimentary knowledge are even better than a mute duck, and talking through things rather than suffering in silence almost always pays off and leads to a quick solution. If you don’t have formal work colleagues, sharing in public forums or pestering your technical friends is often just as good.

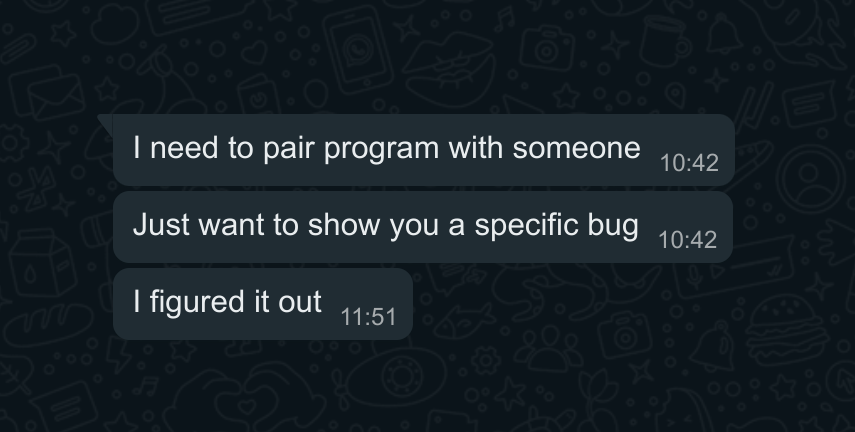

A missed opportunity for some instructive pair programming with a friend.

Another benefit of working with a team is the ability to divide and conquer when one ‘problem’ turns out to be many sub-problems in a trench coat. This one plays nicely with Tips 1 and 2 - if you’ve got well-instrumented minimal examples it’s a lot easier to identify specific issues, and have others work on them without needing to front-load the full complexity of the task.

Tip 4: Refactor repeatedly to surface + eliminate complexity where possible

Software complexity tends to grow over time. Features get added, chunks of code get split into different files and made more modular, options proliferate as more and more configurations are supported… All of this may be perfectly reasonable, but can make it difficult to understand a specific circumstance. Focusing on one task and bringing as much of the code as possible into a single notebook or python file can be a great tool for debugging, forcing you to read the important bits as they get refactored out of their silos and into your new version.

You may worry that the state-of-the-art deep learning techniques are beyond you. Worry not! Beneath all the layers there are almost always fairly simple pieces. For example, consider the case of applying LoRA adapters to a model. I had to do this for a video I was making on diffusion models. The diffusers library implementation spans multiple layers of abstractions and is stuffed with conditions to handle different formats and approaches. It was only when I extracted out and re-wrote the key step that I could properly understand it and begin to experiment.

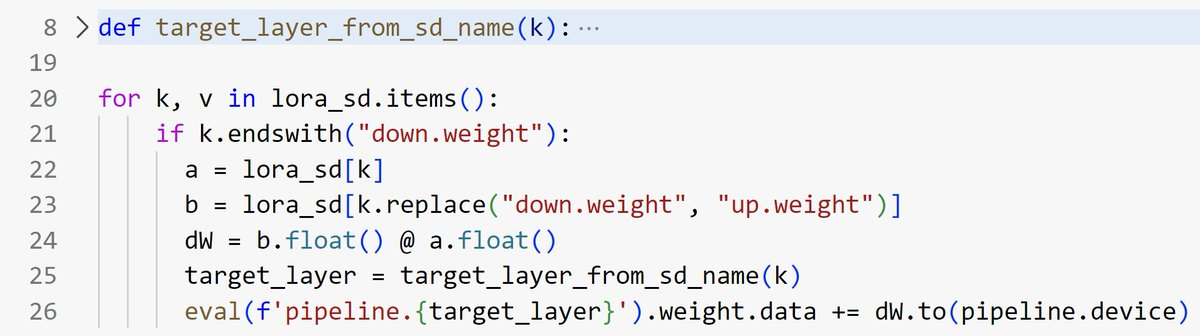

Merging in LoRA weights in a diffusion model pipeline: minimal implementation compared to the >300LOC diffusers version. Theirs supports far more options, but for experimenting + debugging a minimal re-implementation was far easier to work with and understand. Once things are working, we can always switch back to the more complicated ‘official’ version.

Ideally, start from some minimal example and build up from there. Your final result doesn’t need to be a permanent artefact, but having everything in one place when working on especially thorny problems is extremely useful. This is a skill that is hard to learn from examining others’ code, since we typically only get a look at the final result. Notebooks can be a great way to share the progression as you verify things a few lines at a time before combining them into larger blocks, but even here we usually see just the final (working) version rather than all the intermediate pieces.

Final Remarks

These high-surface-area problems are tough. It’s hard to get into flow when there are so many questions that need answers, and debugging them is often a slog rather than a flash of inspiration. The final results can sometimes feel underwhelming compared to coming up with some flashy new algorithm. And yet by pushing through and persevering you can have a big impact… Hopefully this post has inspired you to do so, and given you a few tips to keep in mind when you do.
